Punch Multi Monitor i7 Small Form Factor PC V2

Finding a small size computer able to support 4 monitors can be frustrating. This is why we have designed our multi monitor range of systems. These computers are able to support three 4K monitors (1 via HDMI and two via DisplayPort) and a fourth Full HD monitor via the VGA.  All four monitors can be used at the same time.  The flexible array of monitor outputs help make this system compatible with most monitors available on the market.

Monitor outputs:

1 x HDMI 2.1 port, supports a maximum resolution of 4096 x 2160@60Hz
2 x DisplayPort 1.2, supports a maximum resolution of 4096×2304@60Hz
1 x VGA Port, supports a maximum resolution of 1920×1200@60Hz

Support for up to 4 displays at the same time.  Should you require support for more monitors, get in touch as we can help you configure this PC to support up to 8 monitors at once.

We understand the requirement for office computers to be a compact size, quiet and low power consumption. We also designed our systems with easy maintenance and upgradability in mind.

Based around Intel 12th generation processors you can choose from Core i3 through to Core i7 and then settle on your configuration safe in the knowledge you have the room to expand. We have left spare memory and graphics slots, coupled with a spare storage drive bay building flexibility right into your professional system. Available with the choice of SSD and HDD in a range of sizes, and some great value RAM configurations.

Specifications:

Processor

• Intel Core i7-12700 2.1Ghz 12 Core CPU
• Max Turbo Frequency: 4.9Ghz
• Cache: 25MB
• Intel Air Cooler

Memory

• 16GB DDR4 3200Mhz RAM
• Dual Channel – 2 x 8GB
• Supports up to 128GB
• 4 x DIMM sockets (2 Used)

Hard Drive

• 480GB NVMe M.2 SSD
• 2 x M.2 sockets, 1 free
• 4 SATA Ports, 4 free

Optical Drive

• No ODD
• 1 x Slim 12.7mm Optical Bay, 1 free

Software

• Windows 11 Professional 64-bit
• Clean install, no additional software

Chipset

• Intel B760 Chipset

Display Outputs

• 2 x Displayport v1.2
• 1 x HDMI v2.1
• 1 x VGA
• Supports up to 4 monitors at once
• Supports HDCP and HDR

Graphics

• Integrated Intel UHD Graphics 770

Audio

• High Definition Audio, 5.1 or 7.1 channel
• Audio provided by Realtek Audio Chip on the motherboard

Input Devices

• No Keyboard or Mouse Included

Wired Networking

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Networking

• 2400mbps Wireless Module

Power Supply

• 250 watts SFX
• Power Supply is not user upgradable

Dimensions

• Height: 284mm
• Width: 132mm
• Depth: 350mm

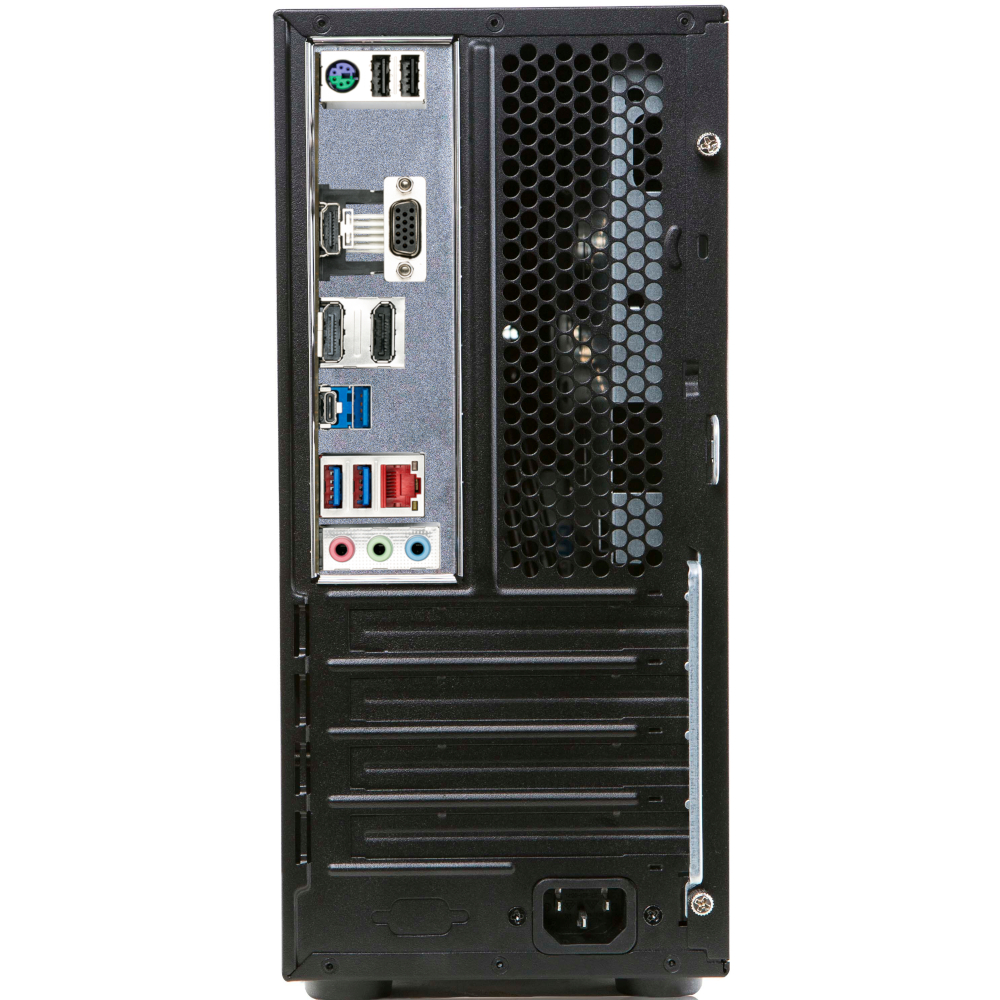

Interfaces

• 1 x PS/2 Keyboard/Mouse Port
• 2 x USB 2.0 Port (2 rear)
• 5 x USB 3.2 Gen 1 Type-A Port (2 front, 3 rear)
• 1 x USB 3.2 Gen 2 Type-C Port (1 rear)
• 1 x RJ-45 Ethernet Port
• 3 x Audio Jacks at the rear
• 2 x Audio Jacks at the front
• 2 x DisplayPort
• 1 x HDMI
• 1 x VGA

Note the display outputs from the motherboard are disabled when a graphics card is installed

Expansion

• 1 x PCI-e x 1 Slot (1 Free)
• 2 x PCI-e x 1 Slots (1 Free, 1 used for wifi card)

Case

• Avance L12 Small Form mATX Case
• Space for additional 1 x 3.5″ HDD and 1 x 2.5″ SSD

Warranty

• 3 Year Return to Base parts and labour
• 1st 30 days collect and return at our expense
