Performance Plus Photography Computer V2

High performance for the professional photographer

The performance plus system adds a higher performance motherboard, little extra storage performance and capacity, larger and faster memory, a higher performance GPU and a higher wattage PSU over and above that available on the standard ‘Performance’ system.

As a professional photographer, your time is money.  A PC that’s faster at editing your images will enable you to achieve more during the working day and spend more time doing the vital editing rather than waiting for your PC to catch up.  If you work in the highest quality settings with high-resolution images, especially if working with high-resolution shots in RAW format to achieve the highest quality; you will appreciate the benefits this system offers.

All our photography PC systems are tuned to the requirements of post-processing large image files.  The WD SN770 Black SSD drives are blisteringly fast, use this for your Lightroom catalogue and work in progress / scratch files.  The system offers excellent performance in Adobe Photoshop CC and Adobe Photoshop Lightroom CC applications.  The WD SN770 drive is one of the fastest SSD drives on the market.

We have also fitted a larger capacity hard drive.  The Seagate Barracuda 6TB storage drive is ideal for storing your image catalogue long term.  For best performance, keep all frequently accessed work and your current ‘work in progress’ on the Secondary 2TB SSD.  Use the hard drive to archive away all your completed jobs.  The primary 1TB WD Black SN770 is also a high performance drive and should be used for your operating system and application files.

The 48GB of DDR5 RAM is enough for most photographers and in this system the performance has been increased to the 6000MHz speed which helps improve responsiveness.

The higher wattage power supply is a benefit if you are looking to upgrade your PC in the future as it will be able to support additional high performance hardware if required.

Graphics performance is increased to the RTX 3060 12GB GPU.  This card has a great colour output with excellent visual quality.  The 12GB of VRAM is plenty for the most demanding of photography needs.  The GPU is also able to accelerate AI image enhancement algorithms.

The Coolermaster Silencio S600 chassis offers excellent potential for installing additional drives while keeping your high performance PC components cool and silent.  The system can accept an additional 4 SATA drives by providing capacity for 4 in any combination of 3.5″ drives 2.5″ drives. Also, the motherboard we use can support 2 x M.2 high-performance SSDs so in total you can use up to 8 storage drives in this system. To add further storage drives to your PC in the configurator, hit the ‘Add Another’ button to the right-hand side of the primary storage drive header.  Alternatively, contact us for a quote with additional storage options.

Take a look at our blogs to find out more about how your choice of PC components affects your overall system performance in Photoshop and Lightroom.

Specification

Processor

• Intel Core i7-14700F 2.1Ghz 20 Core CPU
• 28 Processor Threads
• Max Turbo Frequency 5.4Ghz
• Cache: 33MB
• Thermalright Peerless Assassin 120 Cooler Installed

Memory

• 48GB DDR5 6000Mhz RAM
• Dual Channel – 2 x 24GB
• Supports up to 192GB
• 4 x DIMM sockets (2 Used)

Hard Drive

• 1TB WD Black SN770 NVMe M.2 SSD
• 2TB WD Black SN770 NVMe M.2 SSD
• 3 x M.2 sockets, 1 free
• 6TB Seagate BarraCuda 3.5″ Hard drive
• 4 SATA Ports, 2 free (2 Used for DVDRW & 6TB HDD)

Optical Drive

• Asus DVD Re-Writer, SATA, 24x, M-Disk Support
• 1 x Optical Bays, 0 free

Software

• Windows 11 Home 64-bit
• Clean install, no additional software

Chipset

• Intel Z790 Chipset

Display Outputs

• 3 x DisplayPort
• 1 x HDMI
• Supports up to 4 monitors at once
• Supports HDCP

Graphics

• NVidia RTX 3060 12GB GPU

Audio

• High Definition Audio, 5.1 or 7.1 channel supporting S/PDIF output
• Audio provided by Realtek ALC1220-VB Audio Chip on the motherboard
• Audiophile Grade WIMA Capacitors, Hi-Res Audio certified

Input Devices

• No Keyboard or Mouse Included

Wired Networking

• 1 x Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Wireless Networking

• Intel Wireless-AX AX210 wifi 6E
• Speeds up to 2400mbps
• Bluetooth 5.3

Power Supply

• 750 watts
• Over 82% efficiency

Dimensions

• Height: 478mm
• Width: 209mm
• Depth: 470.5mm

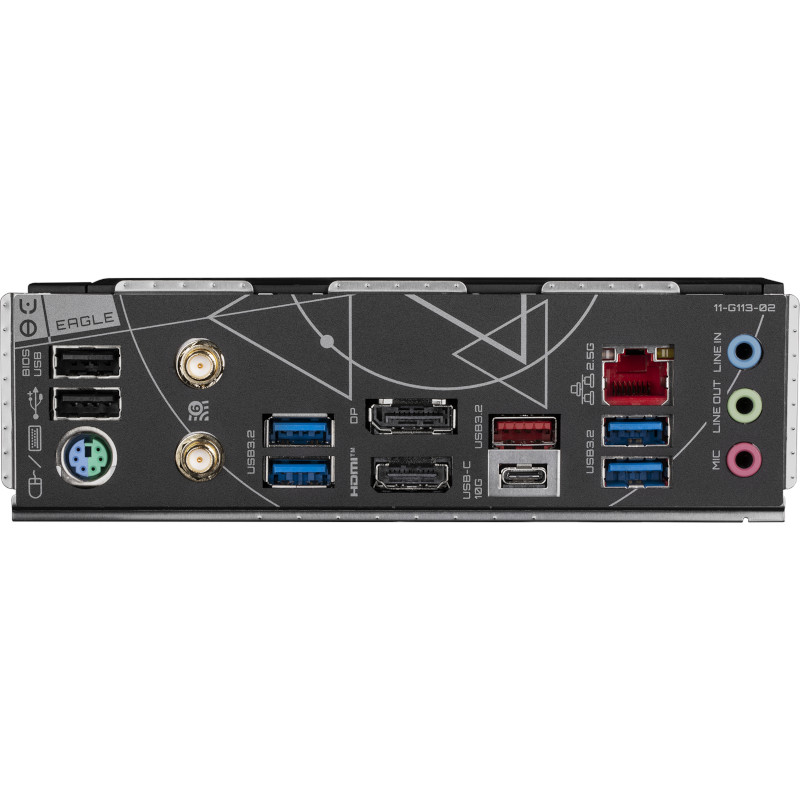

Interfaces

• 1 x PS/2 Keyboard / Mouse Port
• 2 x USB 2.0 Port (2 rear)
• 6 x USB 3.2 Port (2 front, 4 rear)
• 1 x USB 3.2 Gen 2 Port (1 x Type-A at the rear)
• 1 x RJ-45 Ethernet Port
• 3 x Audio Jacks at the rear
• 1 x Combined audio/mic Jack at the front / top
• 3 x DisplayPort on graphics card
• 1 x HDMI on graphics card
• SD Card reader built into the case at the front / top

Note the display outputs from the motherboard are disabled when a graphics card is installed

Expansion

• 3 x PCI-e x 16 Slots, 2 free (1 x Used for GPU)
• 2 x PCI-e x 1 Slots, 2 free

Case

• Coolermaster Silencio S600 Black Case
• 2 x Pre-installed low noise Black 120 mm fans,1 front & 1 rear
• Space for 3 additional fans, 1 at the front & 2 at the top
• Space to accept 120 or 240 mm liquid coolers

Warranty

• 3 Year Return to Base parts and labour
• 1st 30 days collect and return at our expense
