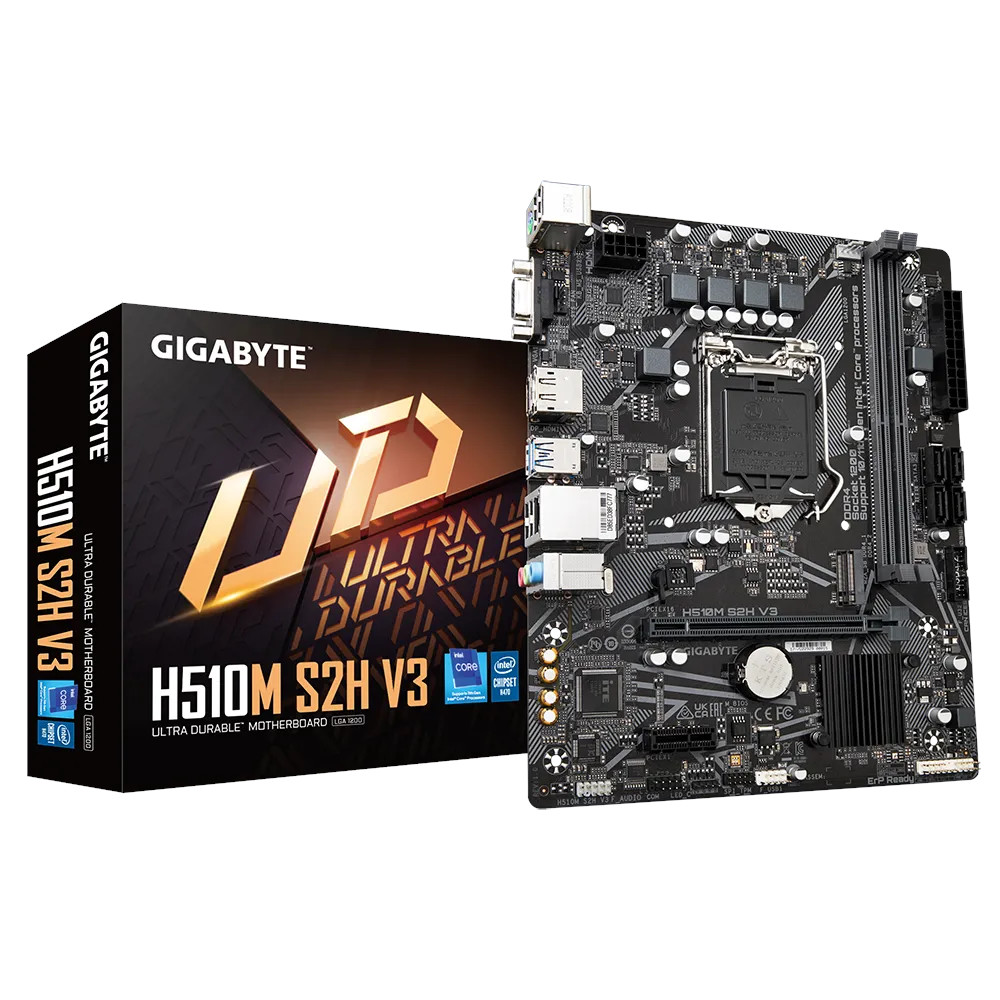

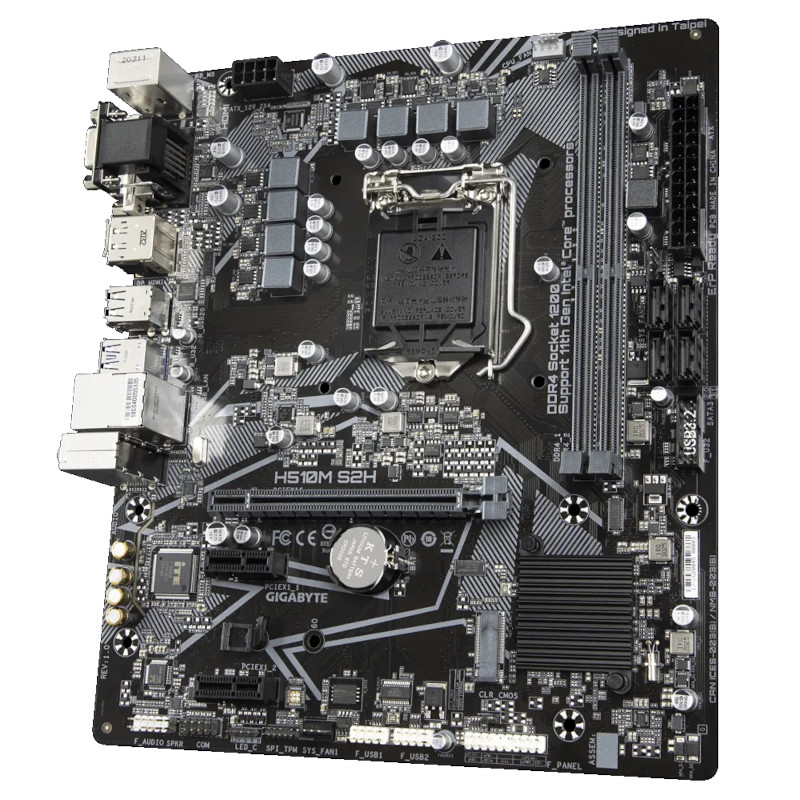

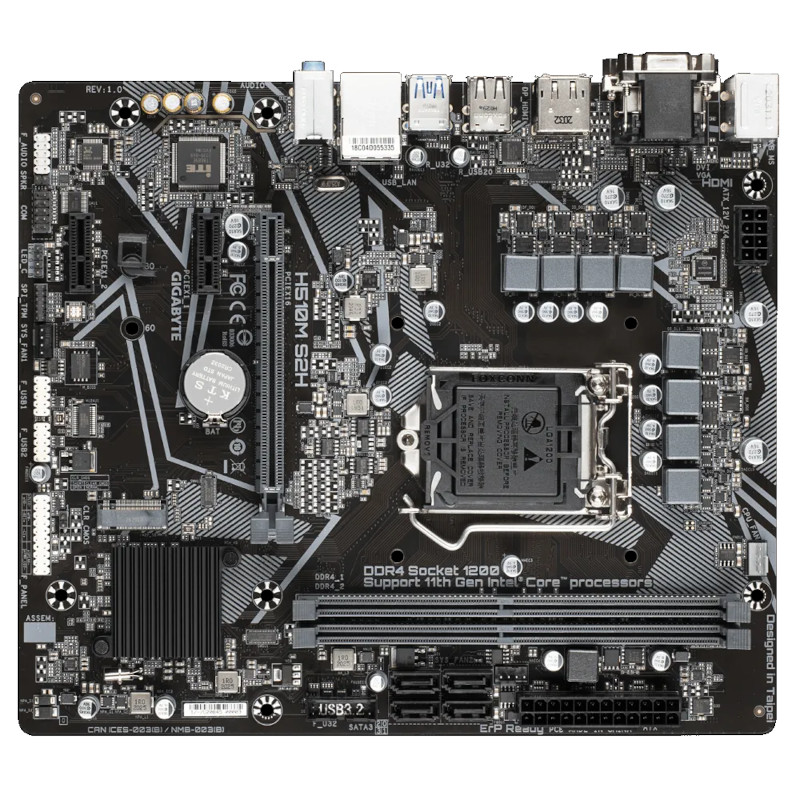

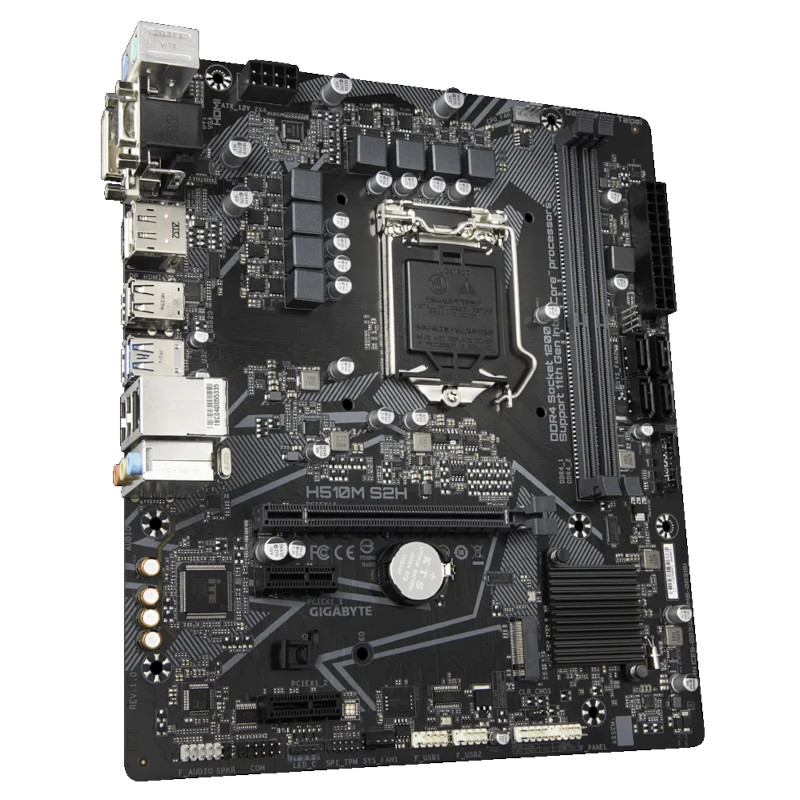

** EOL ** Gigabyte H510M-S2H V3 mATX Motherboard

Gigabyte H510M-S2H

SKU:

1004110

£66.00 (inc VAT)

Trustpilot
  • Supports 11th/10th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • NVMe PCIe Gen3 x4 2280 M.2 Connector
  • GbE LAN with Bandwidth Management
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design

£66.00

Out of stock

Out of stock

SKU: 1004110 Categories: ,
Payment Options

Delivery via DPD in 1 to 2 business days from order. Delivery is free on orders over £500

Consumer Credit is available through Omni Capital Retail Finance; add items to your order and see the monthly cost at the bottom of the basket. Checkout your order with Omni Capital Retail Finance to go through the simple application process or checkout via Paypal and choose to split the payments into 3.

Intel® Ultra Durable Motherboard with GbE LAN, Anti-Sulfur Resistor, Smart Fan 5
  • CPU

    LGA1200 package:

    1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
    2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors
    3. L3 cache varies with CPU

    (Please refer to “CPU Support List” for more information.)

  • Chipset
    1. Intel® H470 Express Chipset
  • Memory
    1. 11th Generation Intel® Core™ i9/i7/i5 processors:
      Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
    2. 10th Generation Intel® Core™ i9/i7 processors:
      Support for DDR4 2933/2666/2400/2133 MHz memory modules
    3. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
      Support for DDR4 2666/2400/2133 MHz memory modules
    4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    5. Dual channel memory architecture
    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    8. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)

  • Onboard Graphics

    Integrated Graphics Processor-Intel® HD Graphics support:

    1. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
      * Support for DisplayPort 1.2 version and HDCP 2.3.
    2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.3.
    3. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
      * The D-Sub port is only available with the 10th Generation processors.
    4. Support for up to 3 displays at the same time
      * Only available with the 10th Generation processors.

    (Graphics specifications may vary depending on CPU support.)

  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN
    1. Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
  • Expansion Slots

    CPU:

    1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

    Chipset:

    1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
  • Storage Interface

    Chipset:

    1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
    2. 4 x SATA 6Gb/s connectors

    RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices

  • USB

    Chipset:

    1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x system fan header
    5. 1 x RGB LED strip header
    6. 1 x M.2 Socket 3 connector
    7. 4 x SATA 6Gb/s connectors
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x USB 3.2 Gen 1 header
    11. 1 x USB 2.0/1.1 header
    12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    13. 1 x serial port header
    14. 1 x Clear CMOS jumper
  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x DisplayPort
    4. 1 x HDMI port
    5. 2 x USB 3.2 Gen 1 ports
    6. 4 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Fan fail warning
    5. Fan speed contro
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      Ambient LED
      EasyTune
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. Micro ATX Form Factor; 22.6cm x 18.5cm

Additional information

Brand

Motherboard Chipset

Intel H510
Motherboard DIMM Slots

2
Motherboard Form factor

mATX
Motherboard Total RAM Supported

64 GB
RAM Type

DDR4
