FEATURES
- 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
- Single 12V. Rail
- Active Power Factor Correction
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
- 3 Year Warranty
- DC-DC Converter improves 3.3V/5V stability
- Quiet and Intelligent Auto Fan for near-silent operation

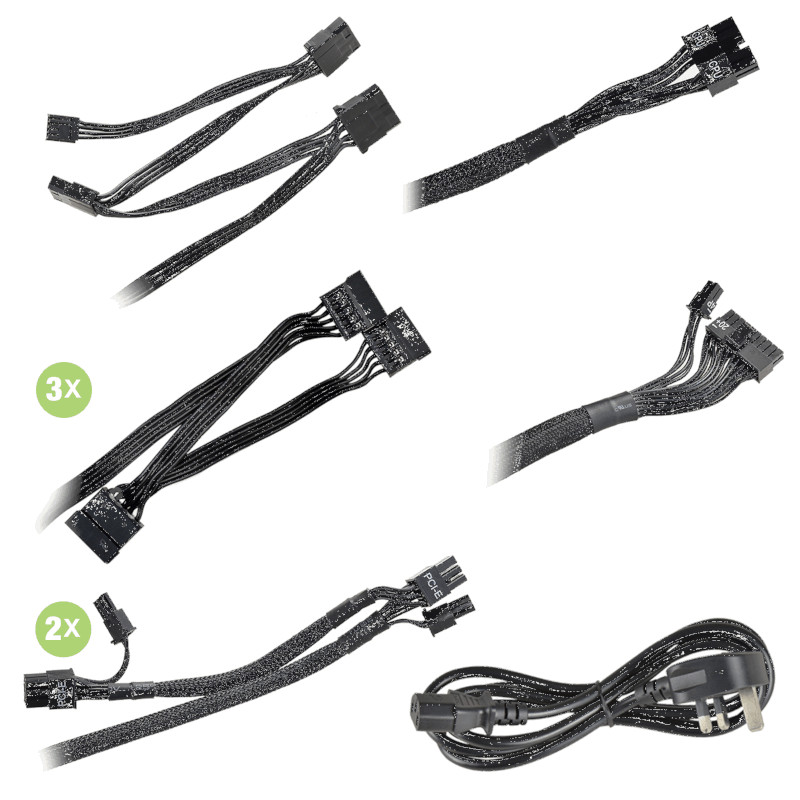

CABLE LENGTH
| ATX Cable | 1x 550mm |
| EPS Cable | 1x 600mm |
| PCIE Cable | 2x 550mm, 670mm |
| SATA Cable | 3x 450mm, 570mm, 690mm |
| Four-Pin Peripheral Cable | 1x 450mm, 570mm, 690mm + 810mm (Floppy) |
| AC Power | 1x 1200mm (m) |
| Modular Cable Type | No |
CONNECTOR QUANTITY
| 24 Pin ATX | 1x |
| EPS (CPU) | 1x 8pin (4+4) |
| PCIE | 4x 8pin (6+2) |
| SATA | 9x |
| Four-Pin Peripheral | 3x |
| Floppy | 1x |
POWER SPECS
| AC Input | 100 – 240 VAC, 10/5A, 50 – 60 Hz | ||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 24A | 20A | 58.3 | 3A | 0.3A |
| 699.6W | |||||
| 150W | 699.6W | 15W | 3.6W | ||
| Total | 700W @ +30C | ||||
ADDITIONAL DETAILS
| Operating Temperature | 0° to 30° C |
| Japanese Capacitors | No |
| ECO Mode | No |
| MTBF | 100,000 Hours |
| Net Weight | 4 lbs |
| Size | 85mm (H) x 150mm (W) x 140mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
| Fan Size / Bearing | 120mm Long Sleeve Bearing |
Product Warranty
This product comes with a 3 year warranty. Registration is recommended.
