Corsair iCUE Build it Beautiful AMD v2

High performance for gaming with the very latest titles.

The build it beautiful PC range combine the ultimate performance with beautiful aesthetics and the best in RGB lighting.  The case is filled with Corsair RGB cooling fans which offer excellent cooling and the best in market RGB.

This v2 version of the AMD build it beautiful system has now been upgraded to use the new Ryzen 9000 series processors which offer a big speed increase over the older 7000 series models.  The memory is also upgraded to the new DDR5 which offers improvements in memory bandwidth.  Performance is excellent in a range of applications from video editing, rendering and gaming.

High Performance PC for gaming

Processor

• AMD Ryzen 7 9700X 8 Core CPU
• 16 Processor Threads
• Max Boost Clock 5.5GHz
• Cache: 32MB
• Corsair NAUTILUS 240 RS ARGB Liquid CPU Cooler – White Liquid Cooler

Memory

• 32GB DDR5 5600Mhz Vengeance RGB PRO RAM
• Dual Channel – 2 x 16GB
• Supports up to 192GB
• 4 x DIMM sockets (2 Used)

Hard Drive

• 1TB WD Black SN770 PCIe 4.0 NVMe M.2 SSD
• 4 x M.2 sockets, 3 free (1 used for the SSD Drive)
• 4 SATA Ports, 4 free

Optical Drive

• None
• No Optical Bays

Software

• Windows 11 Home 64-bit
• Clean install, no additional software

Chipset

• AMD X870 Chipset

Display Outputs

• 3 x DisplayPort 1.4
• 1 x HDMI 2.0b
• Supports up to 4 monitors at once
• Supports HDCP

Graphics

• NVidia RTX 5070 Ti 16GB

Audio

• High Definition Audio, 5.1 or 7.1 channel
• Realtek Audio Controller

Input Devices

• No Keyboard or Mouse Included

Wired Networking

• 1 x Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Wireless Networking

• AMD Wi-Fi 6E RZ616
• Speeds up to 2400Mbps
• Bluetooth 5.2

Power Supply

• 750 watts
• Over 87% efficiency

Dimensions

• Height: 486mm
• Width: 239mm
• Depth: 490mm

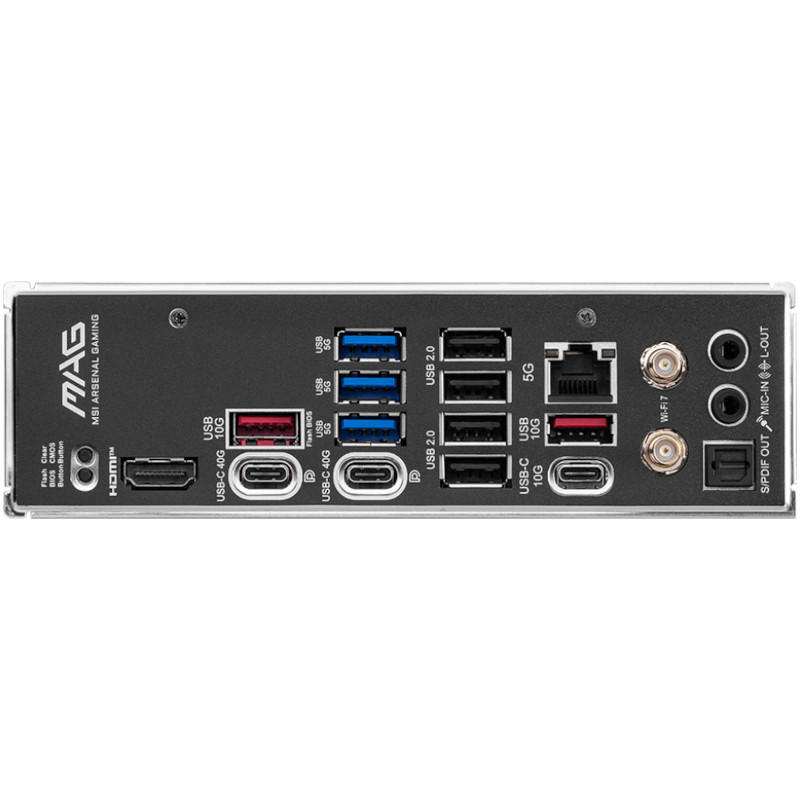

Interfaces

• 4 x USB 2.0 Ports (4 rear)
• 4 x USB 3.2 Gen 1 Port (1 front, 3 rear)
• 2 x USB 3.2 Gen 2 Ports (2 Type-A rear)
• 2 x USB Type-C 3.2 Gen 2 (1 front, 1 rear)
• 2 x USB Type-C 3.2 Gen 2×2 (rear)
• 1 x RJ-45 Ethernet Port
• 6 x Audio Jacks at the rear (one S/PDIF)
• 2 x Audio Jacks at the front
• 3 x DisplayPort 1.4a on video card
• 1 x HDMI 2.1 on video card

Note the display outputs from the motherboard are disabled when a graphics card is installed

Expansion

• 3 x PCI-e x 16 Slots, 2 free (1 Used for video card)
• 1 x PCI-e x 1 Slot

Case

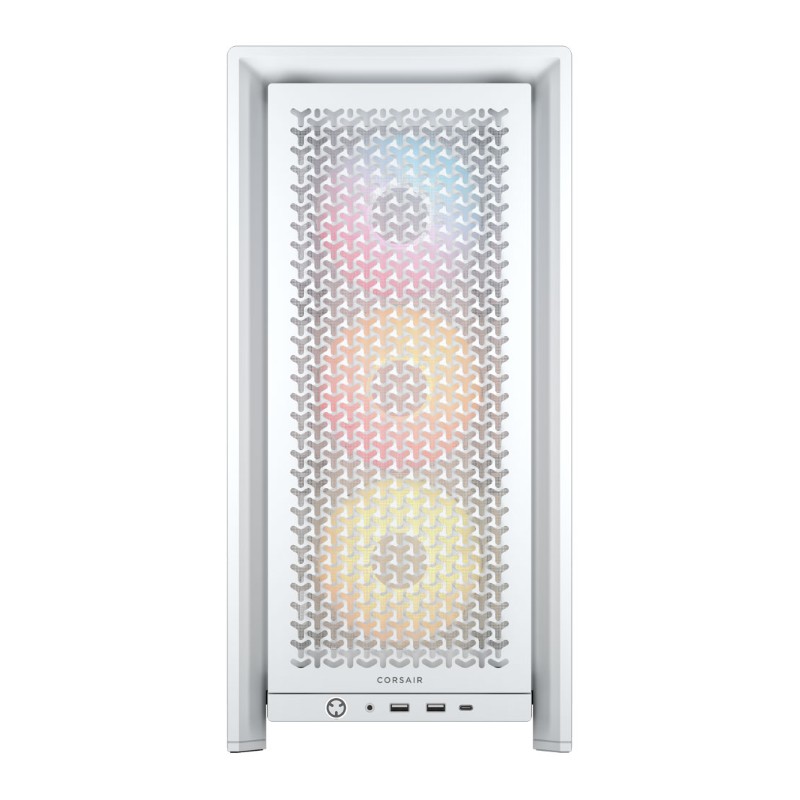

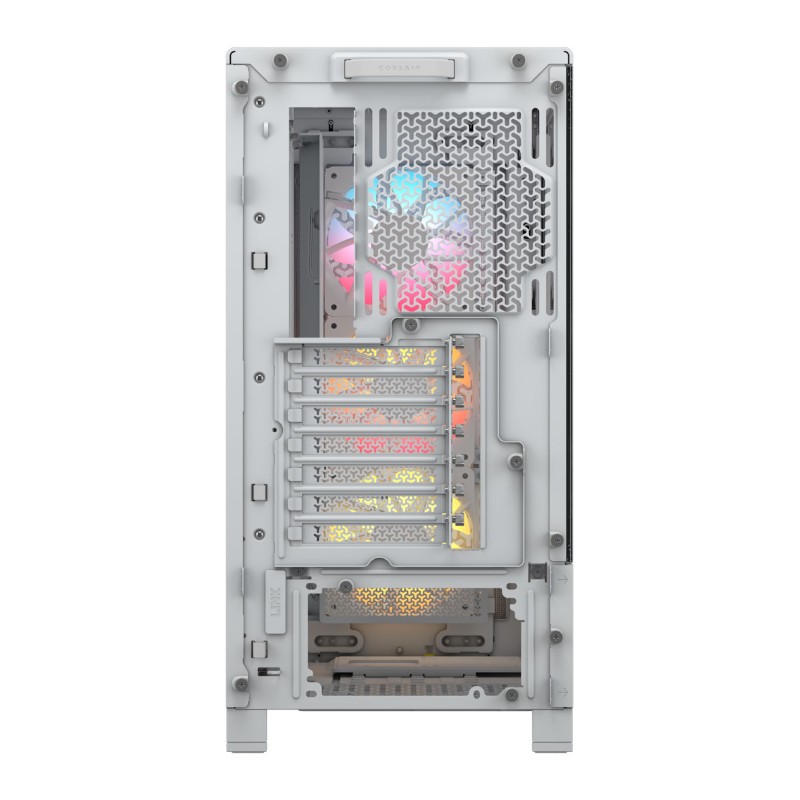

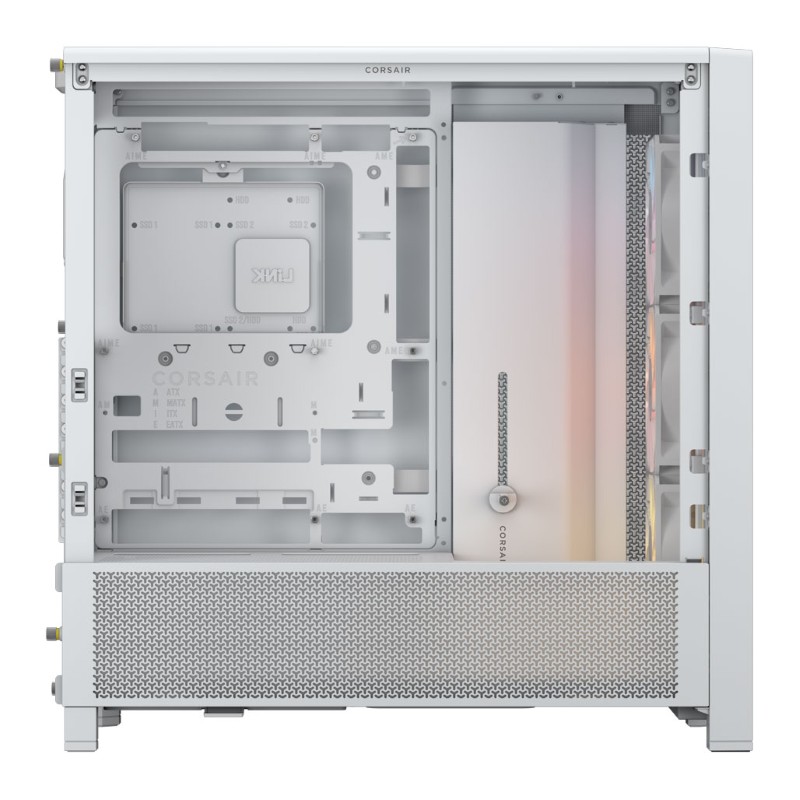

• Corsair 4000D Frame RS aRGB White Case
• 3 x Corsair iCUE RS120 RGB 120mm Case Fans pre-installed

Warranty

• 3 Year Return to Base parts and labour
• 1st 30 days collect and return at our expense
