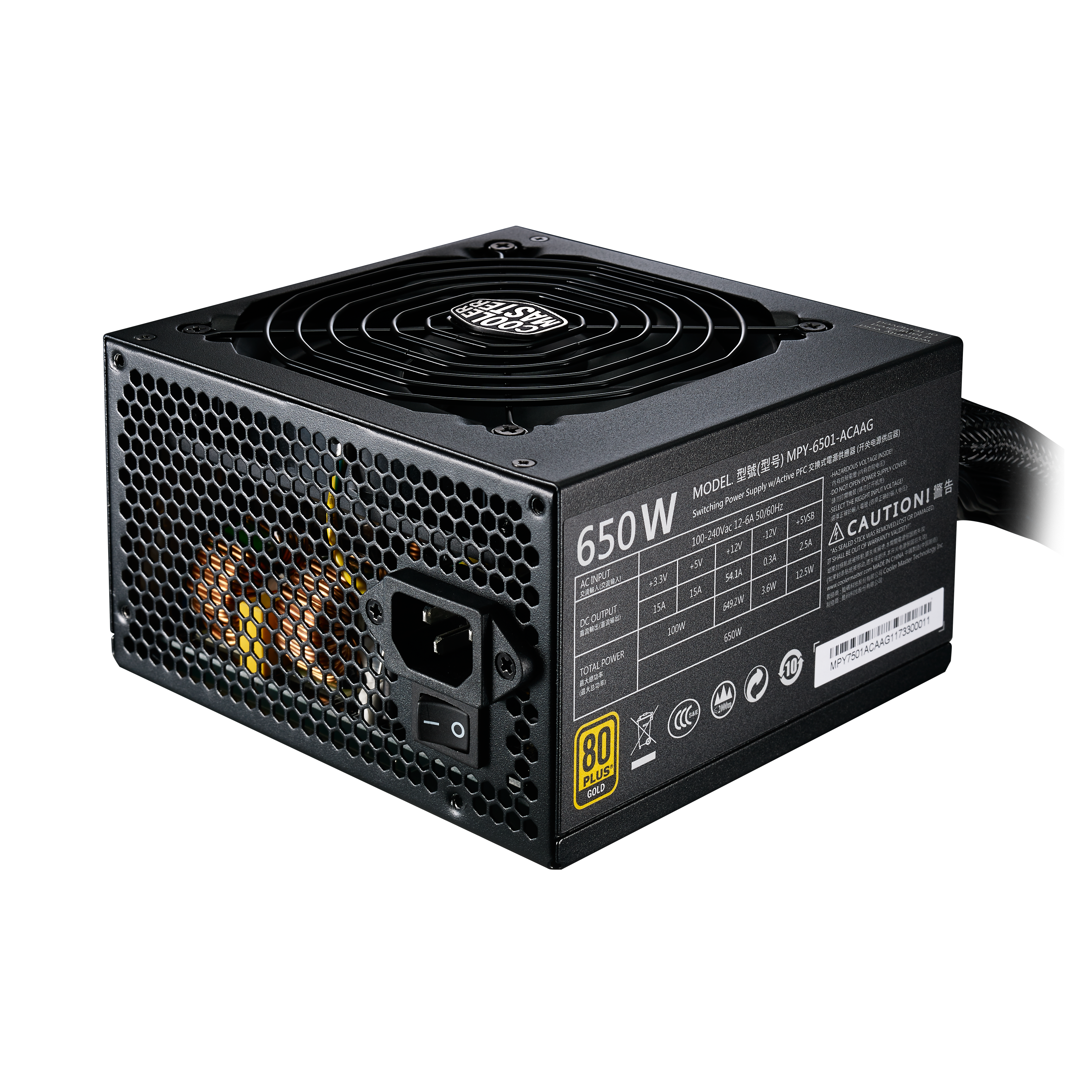

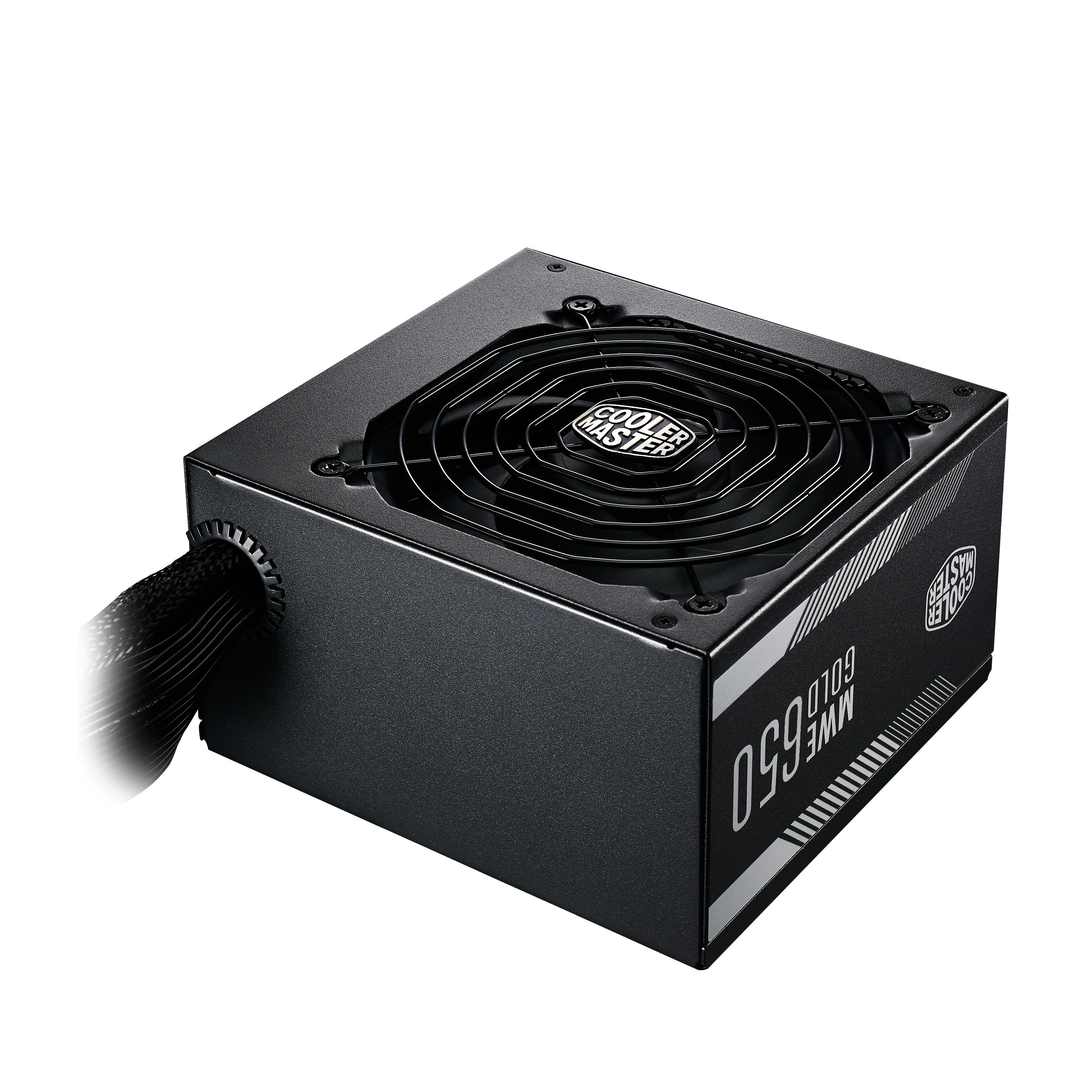

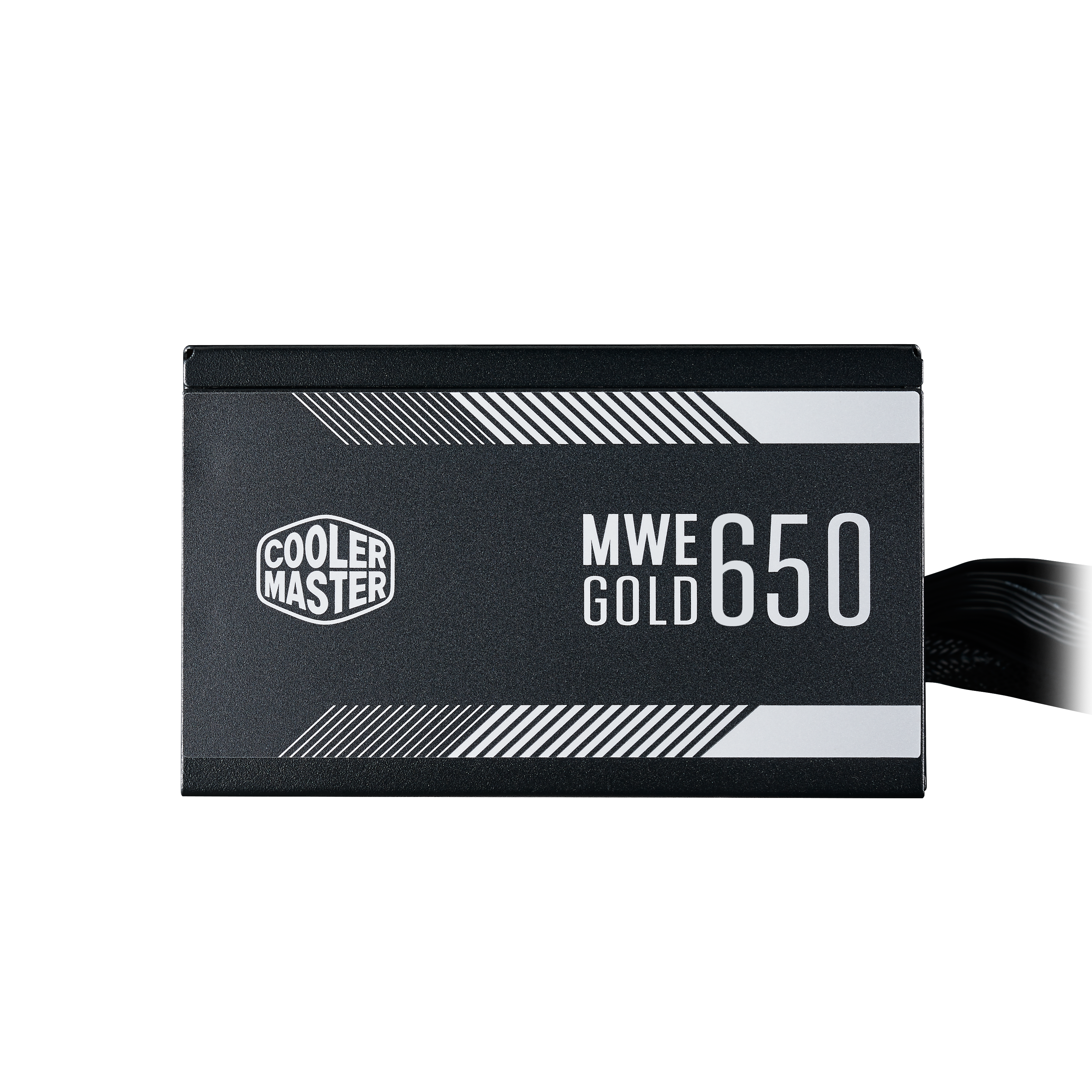

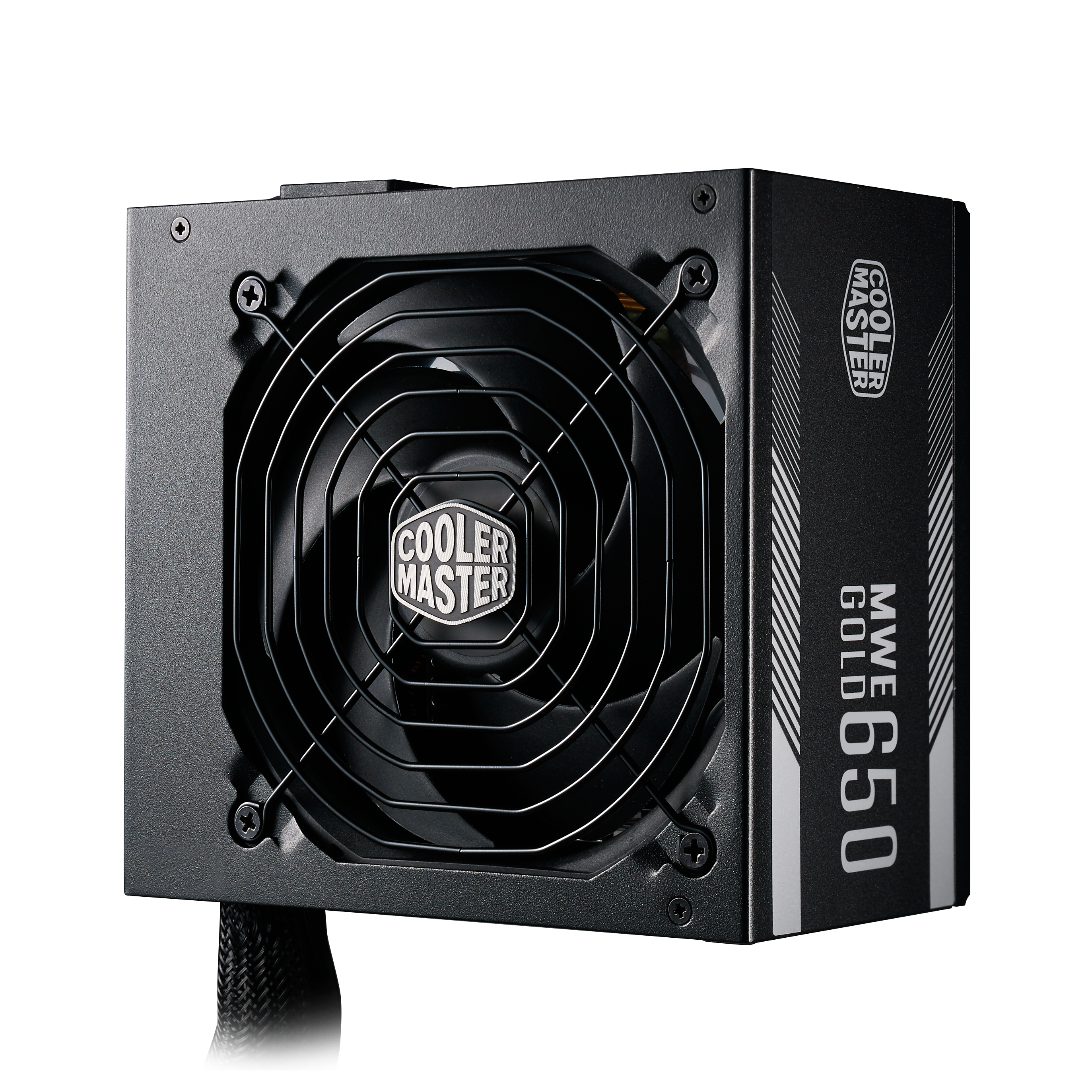

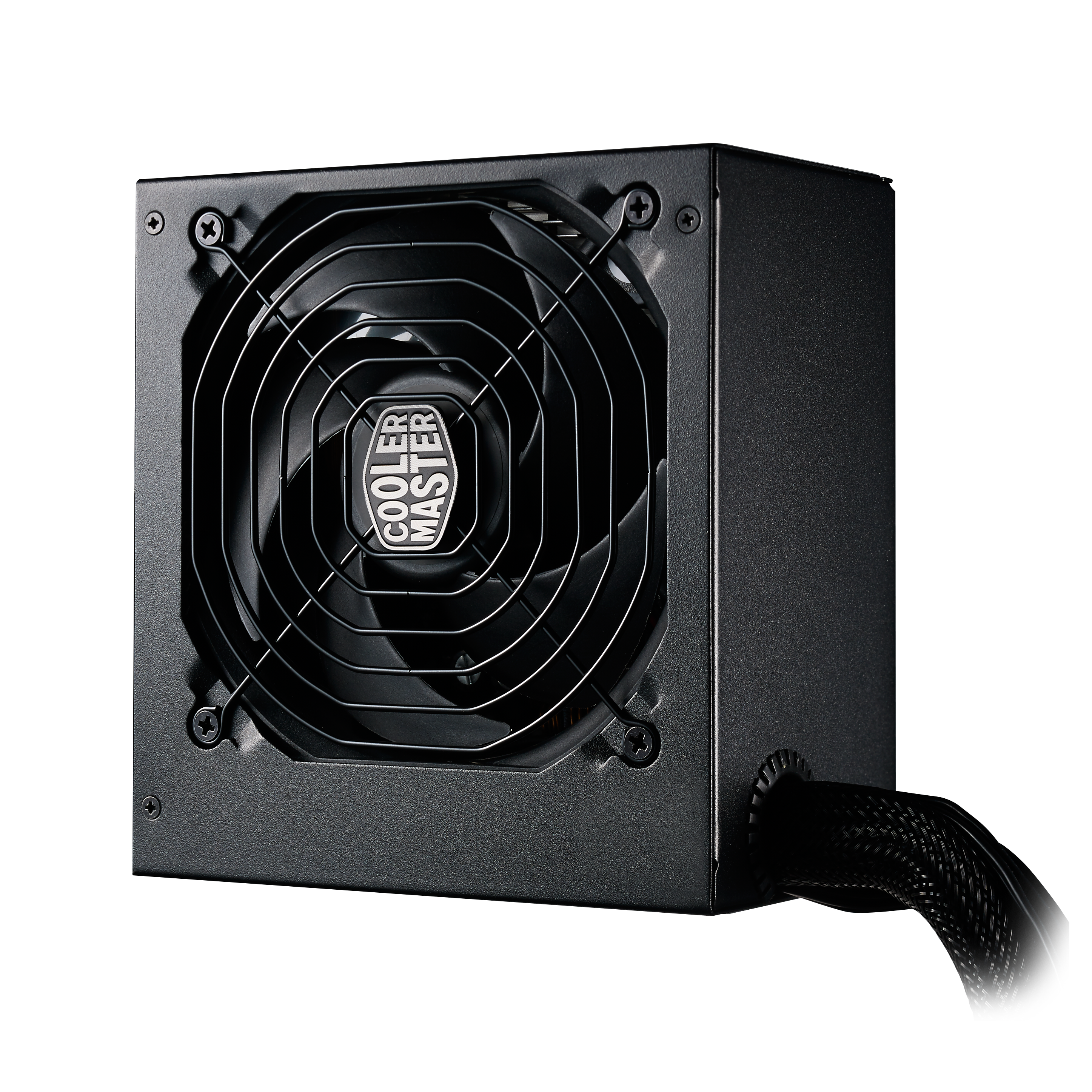

Product Name
- MWE Gold 650
Model
- MPY-6501-ACAAG
ATX Version
- ATX 12V V2.31
PFC
- Active PFC (>0.95 Typical)
Input Voltage
- 100-240V
Input Current
- 12-6A
Input Frequency
- 50-60Hz
Dimensions (L x W x H)
- 140 x 150 x 86 mm
Fan Size
- 120mm
Fan Bearing
- LDB
Power Good Signal
- 100 – 500 ms
Hold Up Time
- >14ms at 100% load
Efficiency
- 90% Typically
ErP 2013 Lot 6
- Yes
MTBF
- >100,000 Hours
Operating Temperature
- 0-45°C
Protections
- OPP, OVP, UVP, SCP, OTP, OCP
Regulatory
- CCC, CE, TUV-SUD, RCM, EAC, cTUVus, FCC, BSMI, CB
MB 24 Pin Connectors
- 1
CPU 12V 4+4 Pin Connectors
- 1
CPU 12V 8 Pin Connectors
- 1
SATA Connectors
- 8
Peripheral 4 Pin Connectors
- 6
FDD Cable 4 Pin Connectors
- 1
PCI-e 6+2 Pin Connectors
- 4
80 Plus
- Gold
Modular
- Non Modular
Wattage
- 500 to 750W
Series
- MWE Gold Series
