Compact i7-14700 DDR5 Workstation

Processor

• Intel Core i7-14700 2.1Ghz 20 Core CPU
• 20 Core / 28 Thread
• Max Turbo Frequency: 5.4GHz
• Cache: 33MB
• ThermalRight AXP90-X47 CPU Cooler

Memory

• 32GB DDR5 5600Mhz RAM
• Dual Channel – 2 x 16GB
• Supports up to 192GB
• 4 x DIMM sockets (2 Used)

Hard Drive

• 1TB NVME M.2 SSD (6000MB/R, 3000MB/W)
• 2 x M.2 sockets, 1 free
• 4 SATA Ports, 4 free

Optical Drive

• None
• 1 x Slim Optical Bays, 1 free

Software

• Windows 11 Home 64-bit
• Clean install, no additional software

Chipset

• Intel B760 Chipset

Display Outputs

• 2 x HDMI Port
• 2 x Displayport
• Supports up to 4 monitors at once

Graphics

• Integrated Intel UHD 770

Audio

• High Definition Audio, 5.1 or 7.1 channel
• Audio provided by Realtek ALC887 Audio Chip on the motherboard

Input Devices

• No Keyboard or Mouse Included

Wired Networking

• Realtek 2.5Gb Ethernet

Wireless Networking

• Intel Wi-Fi 6E 2400Mbps
• Bluetooth 5.3

Power Supply

• 350 watts

Dimensions

• 132 mm (W)
• 284 mm (H) – The Height becomes 291mm including the chassis feet.
• 350 m (D)

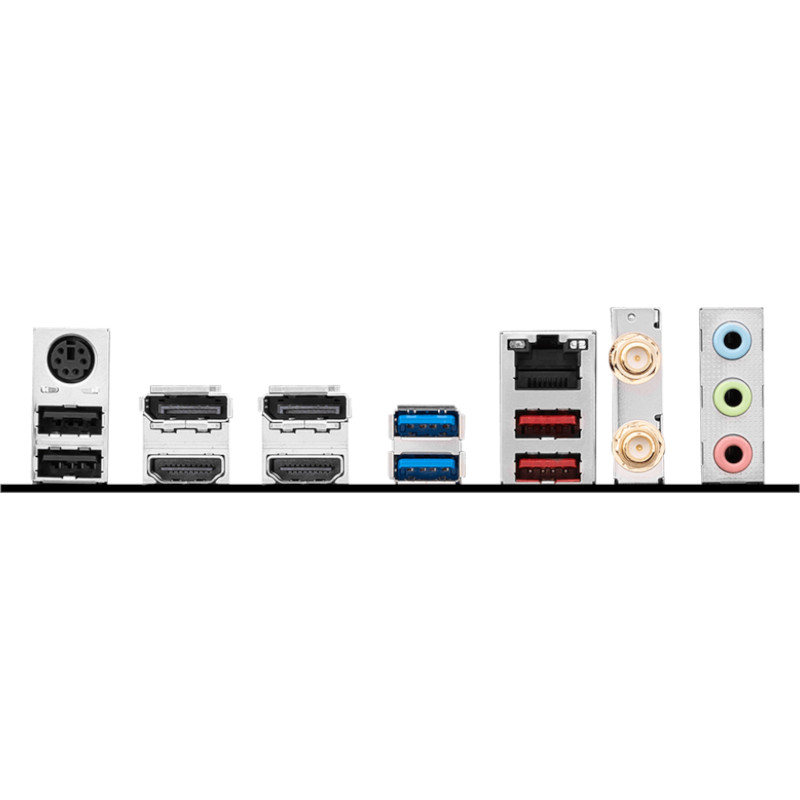

Interfaces

• 1 x PS/2 Keyboard / Mouse Port
• 2 x USB 2.0 Port (2 rear)
• 4 x USB 3.2 Gen 1 Port (2 front, 2 rear)
• 2 x USB 3.2 Gen 2 Port (2 rear)
• 1 x Realtek 2.5Gb Ethernet
• 3 x Audio Jacks at the rear
• 2 x Audio Jacks at the front
• 2 x HDMI
• 2 x Displayport

Note the display outputs from the motherboard are disabled when a graphics card is installed

Expansion

• 2 x PCI-e x 16 Slots, 2 free
• 1 x PCI-e x 1 Slots, 1 free

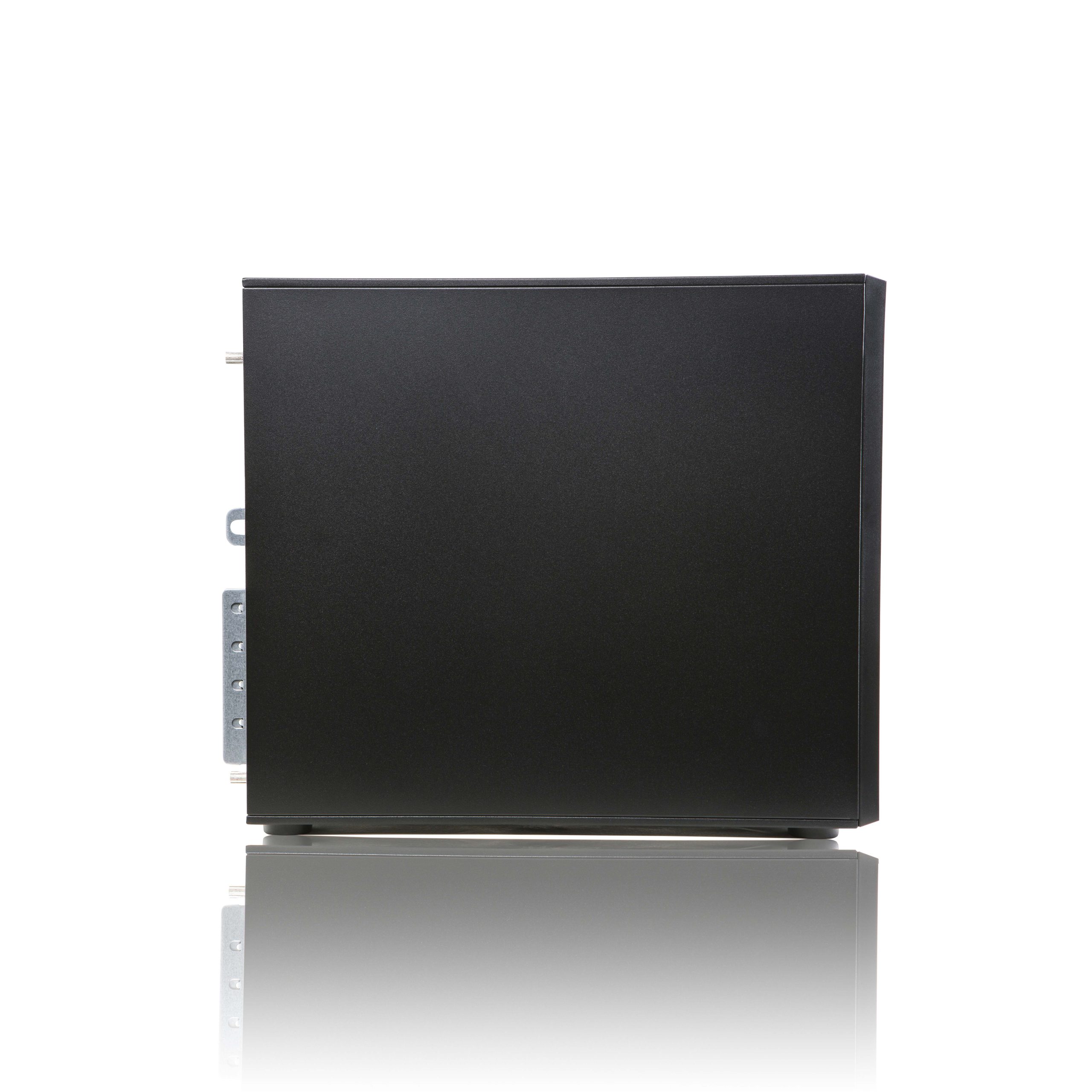

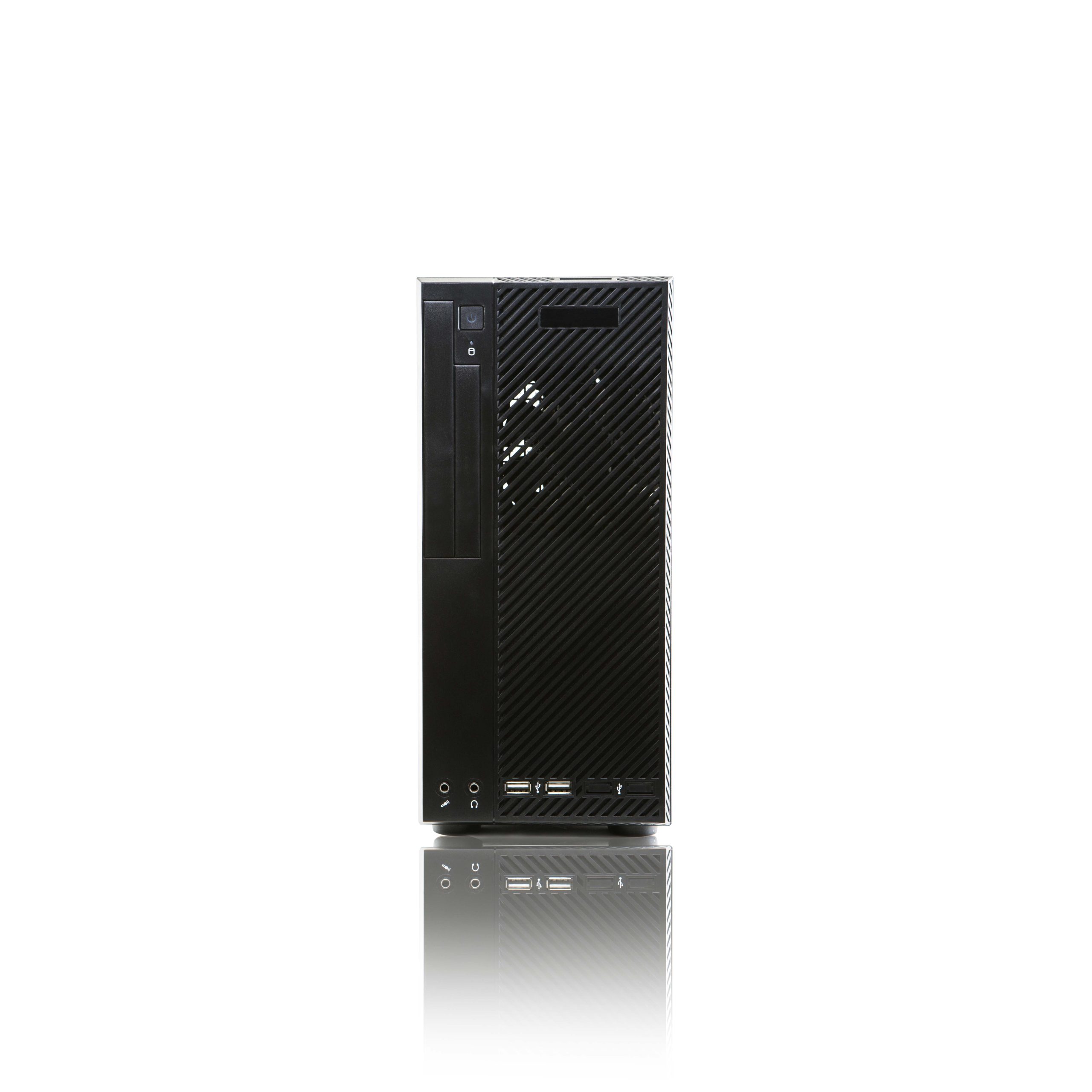

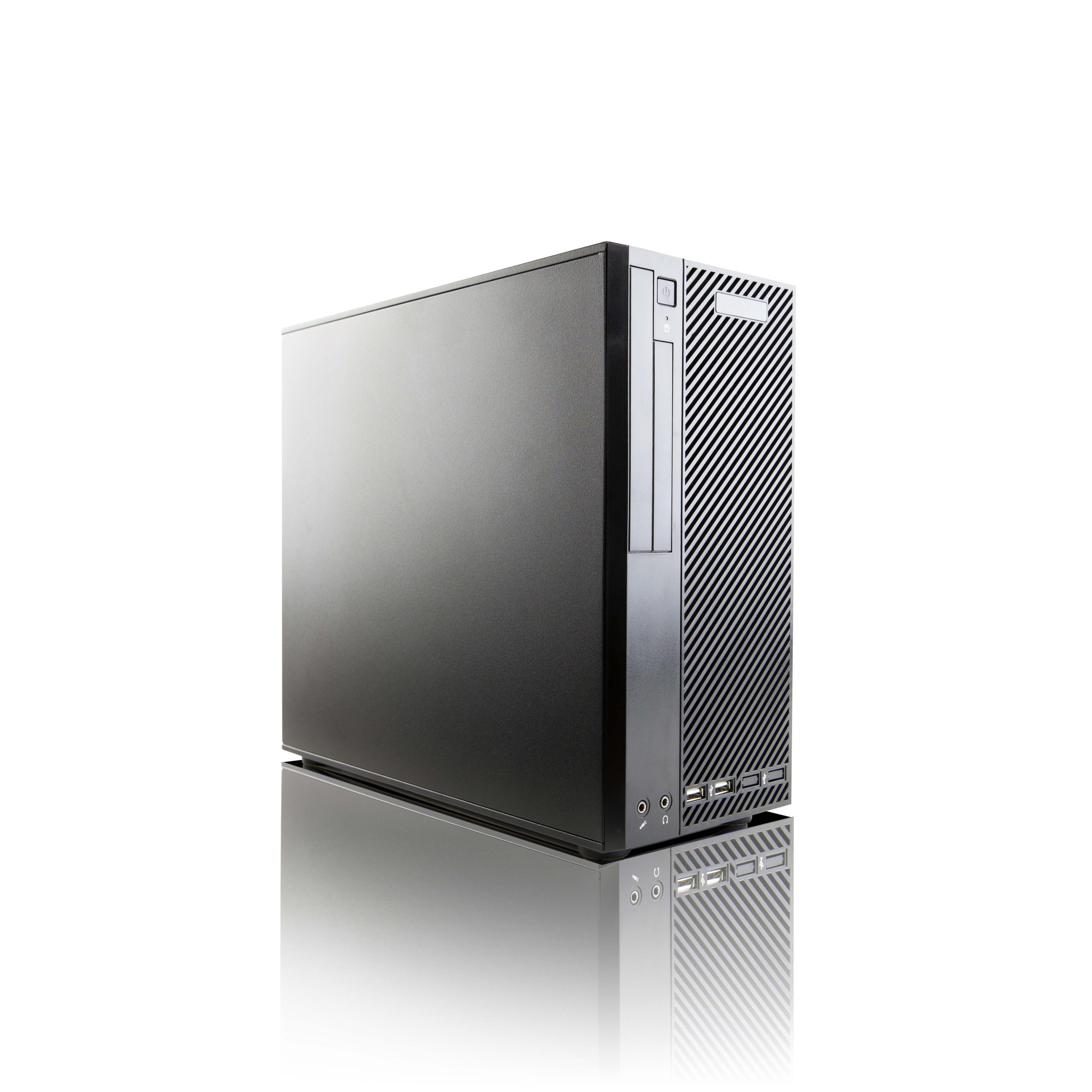

Chassis

• Avance L12 Small Form Factor Case
• Thermalright TL-B9 92mm High Airflow Chassis Fan

Warranty

• 3 Year Return to Base parts and labour
• 1st 30 days collect and return at our expense
