5th Generation Threadripper Workstation

High end performance for CPU intensive applications

A high performance PC workstation designed to excel at highly threaded workloads, this system really performs well in professional productivity software.  This system is ideal for multiple tasks including video editing and rendering, 3D modelling, content creation, trans-coding, ray tracing, digital audio encoding, running virtual machines and many engineering and scientific applications.

The latest 5th generation AMD Ryzen Threadripper processor offers incredible performance from a very large number of cores and threads coupled with leading performance per core.  This system can handle many processes running concurrently, reducing compute time for CPU intensive workloads.

Discover more about Threadripper™ Pro Workstations

Specification

Processor

• AMD Threadripper 5965WX 24 core, 3.8GHz,
• Max Turbo Frequency 4.5Ghz
• Cache: 140MB
• Corsair iCue H150i Cappelix XT Cooler Installed

Memory

• 64GB DDR4 3200Mhz RAM
• Quad Channel – 4 x 16GB
• Supports up to 1TB Memory
• 8 x DIMM sockets (4 Used)

Hard Drive

• 500GB WD Blue SN580 NVMe SSD
• 1TB WD Black SN770 NVMe M.2 SSD
• 3 x M.2 sockets, 1 free
• 8 SATA Ports, 8 free

Optical Drive

• None

Software

• Windows 11 Professional 64-bit
• Clean install, no additional software

Chipset

• AMD WRX80 Chipset

Display Outputs

• 4 x Mini-DisplayPort 1.4
• Supports up to 4 monitors at once
• Supports HDCP

Graphics

• 1 x NVidia Quadro T1000 4GB

Audio

• High Definition Audio, 5.1 or 7.1 channel
• Realtek W4080 codec on the motherboard

Input Devices

• No Keyboard or Mouse Included

Wired Networking

• 2 x Intel® X550-AT2 dual 10Gb Ethernet ports

Wireless Networking

• Intel® Wi-Fi 6 AX200 Included
• Wifi speeds up to 2400Mbps & Bluetooth 5.1

Power Supply

• 850 watts, high efficiency (87%), Modular.

Dimensions

• Height: 566mm
• Width: 240mm
• Depth: 600mm

Interfaces

• 4 x USB 3.2 Type-A Port (2 rear, 2 front)
• 8 x USB 3.2 Gen 2 Type-A Port (8 rear)
• 2 x USB 3.2 Gen 2 Type-C Port (1 rear, 1 front)
• 1 x USB 3.2 Gen 2×2 Type-C Port (rear)
• 2 x RJ-45 10Gb Ethernet Ports
• 6 x Audio Jacks at the rear including S/PDIF
• 2 x Audio Jacks at the front
• 4 x Mini-DisplayPort 1.4 on GPU

Expansion

• 7 x PCI-e x 16 Slots, 6 free

Case

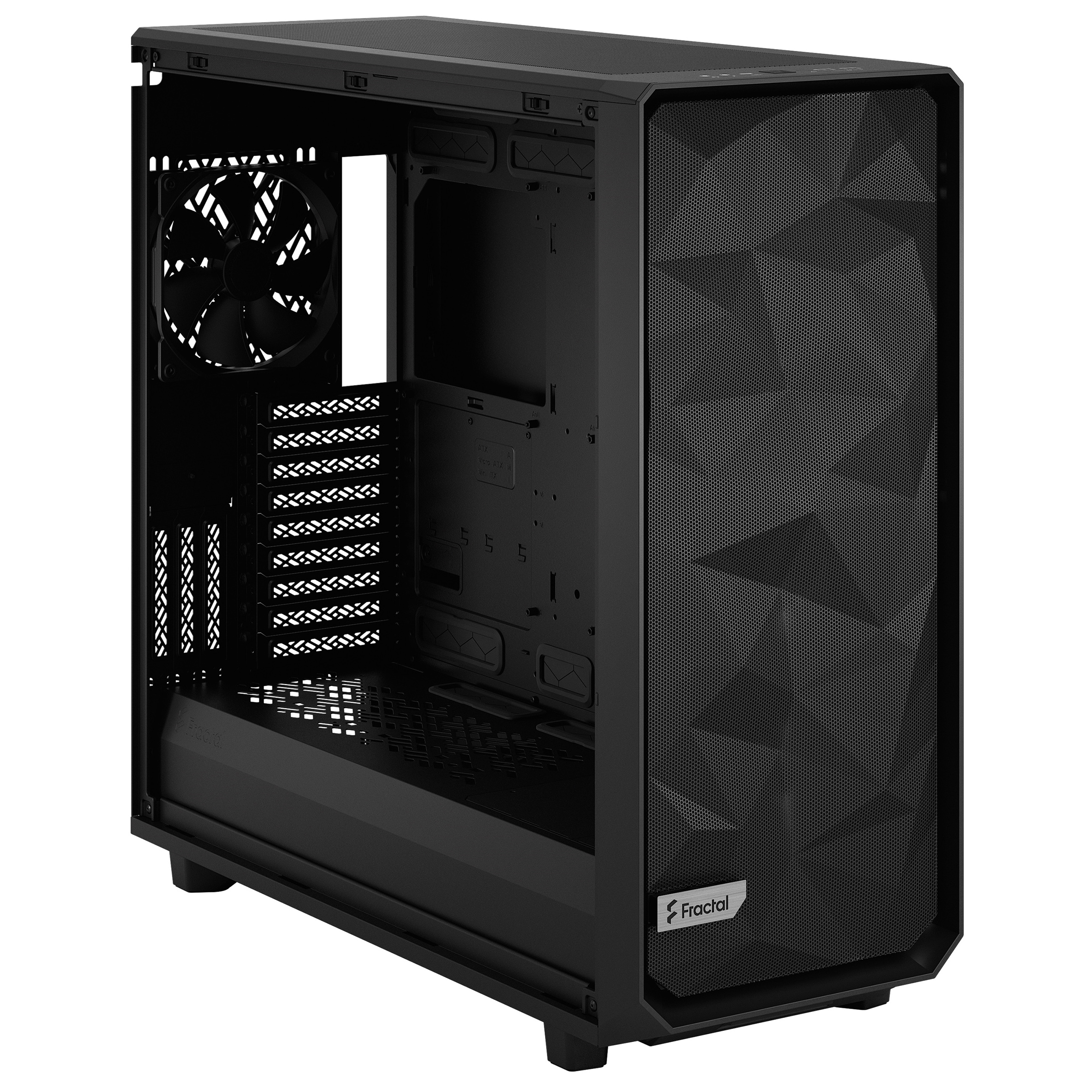

• Fractal Design Meshify 2 XL Black ATX Case
• 3 x 140mm Pre-installed fans
• Space for 6 additional 140mm fan
• Space to accept 120/140/240/280/360/420mm liquid coolers

Warranty

• 3 Year Return to Base parts and labour
• 1st 30 days collect and return at our expense
