14th Generation Professional Plus DDR5 Workstation PC

A very high performance PC for the professional photographer

This system has been designed from the ground up to offer outstanding performance in all kinds of demanding tasks. We have taken the already blistering performance of the Professional DDR5 Workstation PC and added more storage, a higher performance motherboard, higher performance memory, better cooling, better connectivity and a professional Quadro graphics card.  This is the system to buy if only the best will do!

There are higher performance Quadro cards available if you have the budget but little else can be gained regarding raw system performance as the components used in this build represent the pinnacle of current technology.

Connectivity and expandability have been taken to the next level with the inclusion of the Gigabyte Z790 Aorus Master motherboard.  The included Wifi is the very best on the market.  There are an incredible 16 USB ports on the PC and 8 of them are the highest performance USB 3.2 Gen 2 variety.  There are 4 of the new high-performance M.2 PCIe NVMe SSD slots which operate using the faster PCIe 4.0 standard, the audio is of the highest quality.

The processor is the latest generation Intel i9-14900K which is the fastest available processor for the vast majority of applications in Windows making this PC a fantastic all-round system.

Specifications

Processor

• Intel Core i9-14900K 6.0GHz 24 Core CPU
• 32 Processor Threads
• Max Turbo Frequency 6Ghz
• Cache: 36MB
• Corsair H170i Elite Capellix CPU Liquid Cooler Installed

Memory

• 64GB DDR5 5200Mhz RAM
• Dual Channel – 2 x 32GB
• Supports up to 192GB
• 4 x DIMM sockets (4 Used)

Hard Drives

• 1TB Samsung 990 Evo M.2 PCIe 4.0 SSD – Primary C: drive with OS loaded
• 4TB Samsung 990 Pro PCIe 4.0 SSD – D: Drive
• 5 x M.2 sockets, 3 free
• 6 SATA Ports, 6 free

Optical Drive

• None
• No Optical Bays

Card Reader

• None

Software

• Windows 11 Professional 64-bit
• Clean install, no additional software

Chipset

• Intel Z790 Chipset

Display Outputs

• 4 x DisplayPort
• Supports up to 4 monitors at once
• Supports HDCP

Graphics

• NVidia Quadro RTX A4000 16GB Professional GPU with 10 bit colour

Audio

• High Definition Audio, 5.1 or 7.1 channel
• Audio provided by Realtek ALC1220-VB Audio Chip on the motherboard
• ESS ES9118 DAC chip
• Support for S/PDIF Optical Out

Input Devices

• No Keyboard or Mouse Included

Wired Networking

• 1 x Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless Networking

• Intel Wireless-AX Wifi 6E AX1690
• Speeds up to 2400mbps
• Bluetooth 5.3

Power Supply

• 850 watts
• Over 87% efficiency

Dimensions

• Height: 600mm
• Width: 248mm
• Depth: 550mm

Interfaces

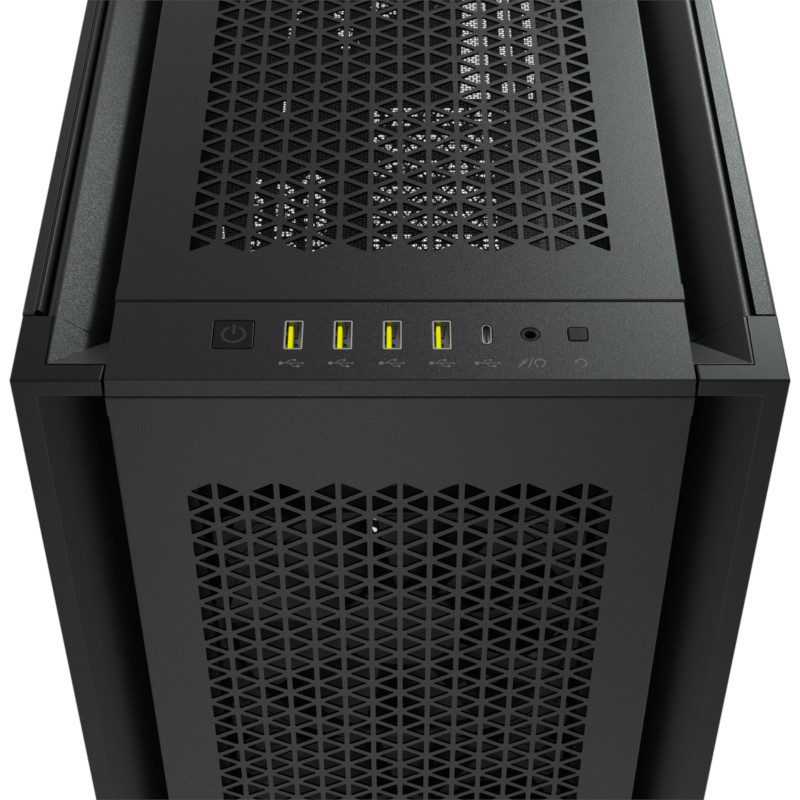

• 8 x USB 3.2 Gen 1 Ports (4 front, 4 Rear)
• 1 x USB Type-C Gen 3.1 Port (1 Front)
• 5 x USB 3.2 Gen 2 Type-A ports (red) (10 rear)
• 1 x USB Type-C Gen 3.2 Gen 2 Port (1 Rear)
• 1 x USB Type-C Gen 3.2 Gen 2×2 Port (1 Rear)
• 1 x RJ-45 Ethernet Port (1 x 10Gb Rear)
• 6 x Audio Jacks at the rear including S/PDIF out
• 1 x Combined Audio Jack at the front
• 4 x DisplayPort on Graphics card
• 2 x Antenna Connectors for the Wifi and Bluetooth

Note the display outputs from the motherboard are disabled when a graphics card is installed

Expansion

• 3 x PCI-e x 16 Slots, 2 free (1 x Used for video card)

Case

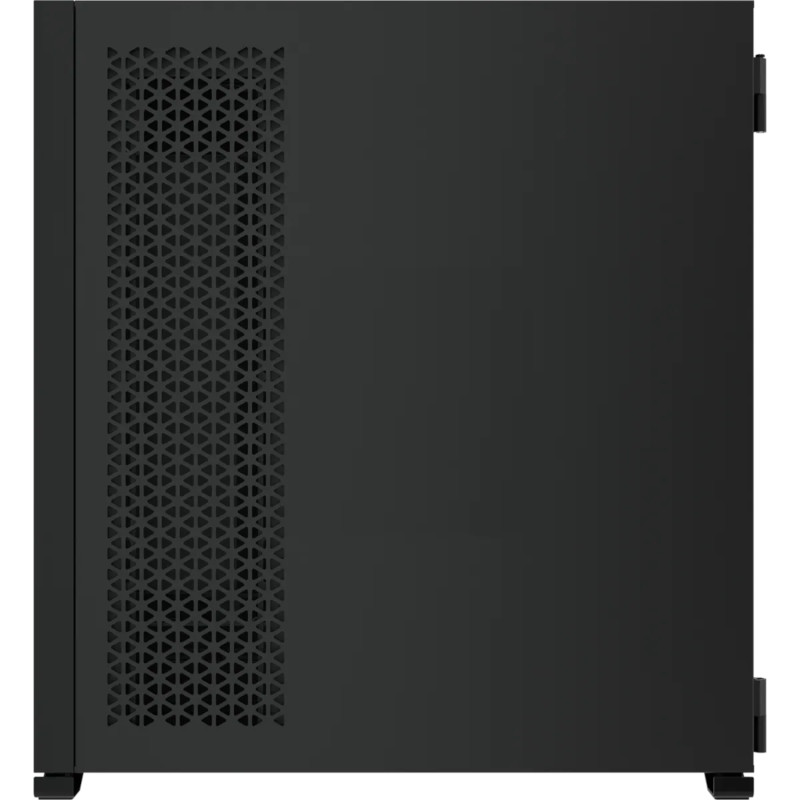

• Corsair 7000D Airflow Full Tower Black ATX Case
• 3 x 140mm pre-installed fans at the front
• Space for 7 additional 120/140mm fans
• Space to accept 120/140/240/280/360/420mm liquid coolers

Warranty

• 3 Year Return to Base parts and labour
• 1st 30 days collect and return at our expense
